Name： |
DPM6 |
|
|
| |
|
| |
|
| |
|
| instructions: |

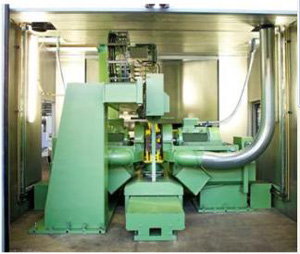

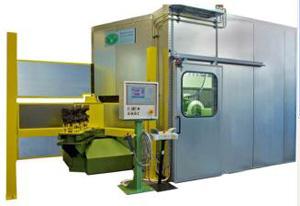

NC-controlled grinding machine for blocks and heads

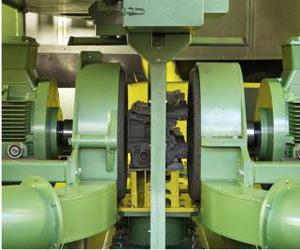

 ◆Grinding machine with reciprocating machine table to grind 4 faces
◆Hydraulic work piece clamping system with positioning control

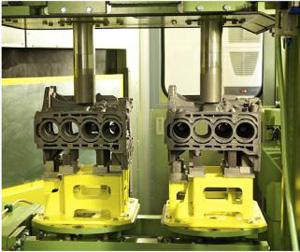

◆Machining for two small or one big block
◆3-station round table loading system
◆Automatic wheel wear compensation
◆PLC control with storage of machining programme
◆Option:Removal of grit and flint with floor conveyor system
◆Option:Work piece discharging with robot
◆Option:Exhaust system
| Technical data DPM6 |
| Grinding power |
2x55kW or 2x75kW |
| Grinding wheel dimension |
760x76x560mm |
| Grinding speed |
45m/s |
| Block dimension |
2 car blocks or 1 truck block |
| Movements |
Hydraulic driven with NC-axis |
|
|
